The Story

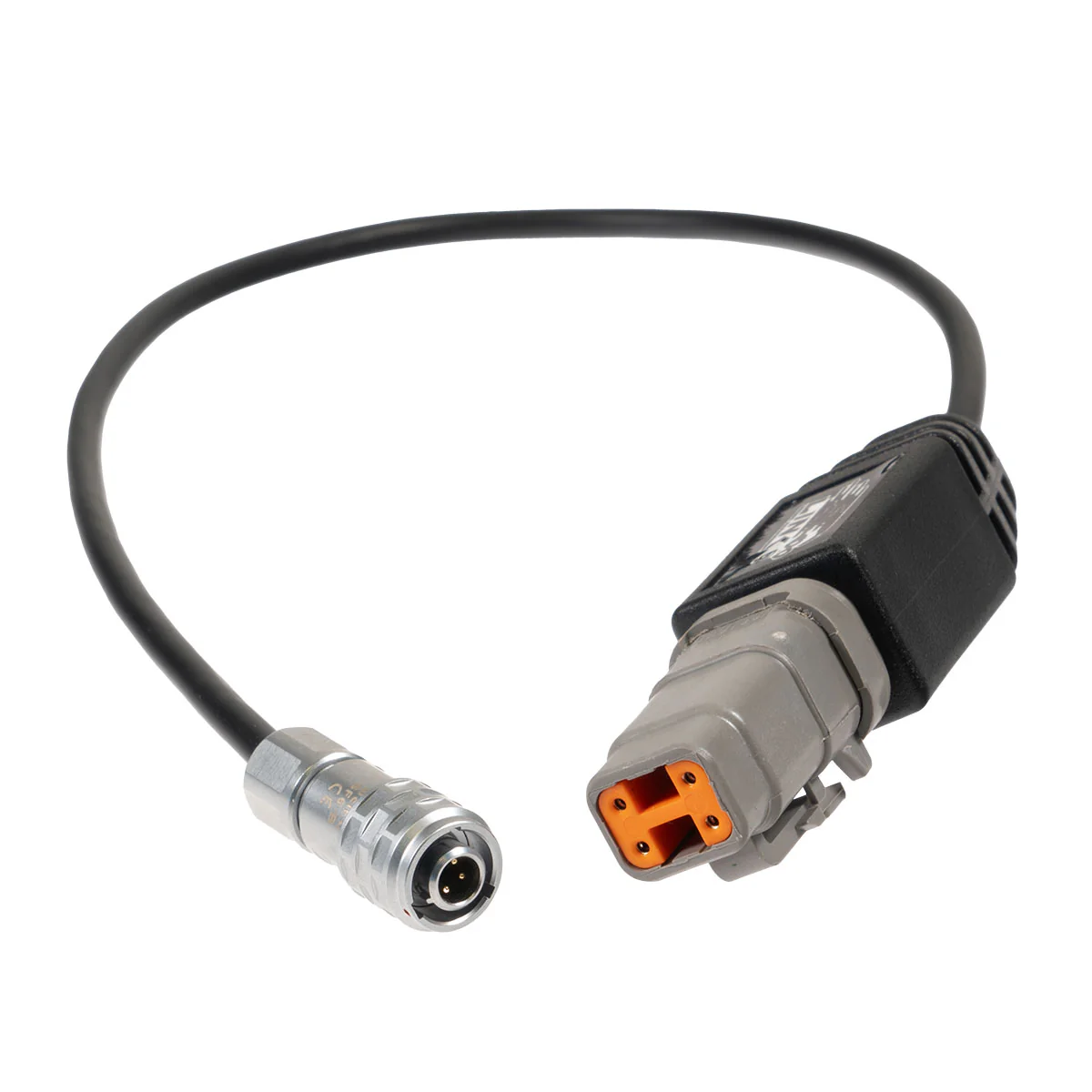

300mm CAN connection cable required to add CAN 1 communication to G5 Voodoo Neo ECUs, which have CAN accessible via the 4-pin round WEIPU connector on the front of the ECU. Power for the CAN bus is supplied from the ECU through this cable.
Compatible ECUs: G5 Voodoo Neo (CAN1). Specs: DTM4 male to WEIPU SF610B/P4, 300mm loom length. DTM4 pin-out — Pin 4: CAN H, Pin 3: CAN L, Pin 2: Ground, Pin 1: 12V.
Description
300mm CAN connection cable required to add CAN 1 communication to G5 Voodoo Neo ECUs, which have CAN accessible via the 4-pin round WEIPU connector on the front of the ECU. Power for the CAN bus is supplied from the ECU through this cable.
Compatible ECUs: G5 Voodoo Neo (CAN1). Specs: DTM4 male to WEIPU SF610B/P4, 300mm loom length. DTM4 pin-out — Pin 4: CAN H, Pin 3: CAN L, Pin 2: Ground, Pin 1: 12V.
